Round Bar Concave Cover Plates (Attachment)

IMPORTANT: Separator should not be engaged with round bar concave covers installed when concave clearance is less than 10 mm (3/8 in.). Round bar concave covers should not be installed during leveling of concave.

H90338
H90338-UN-29NOV07

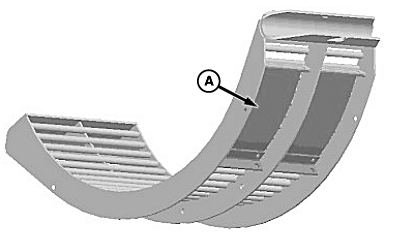

A - Round Bar Concave Cover Plates

Round bar concave cover plates (A) can be installed starting on right-hand side of concave to assist in evening crop mat distribution to cleaning shoe. Covers in middle concave are beneficial when operating in situations with high tailings volumes.

Round bar concave cover plates are available from your John Deere dealer.

OUO6075,0000D32-19-20071129
