Change Machine Settings

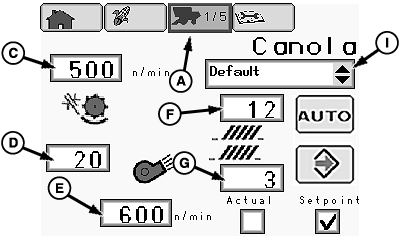

Machine Settings Page

H86415-UN-06MAR07

H86937-UN-20NOV06

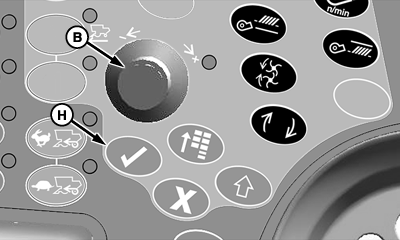

A - Setup Pages Icon

B - Selection Dial

C - Threshing Speed

D - Threshing Clearance

E - Fan Speed

F - Chaffer Clearance

G - Sieve Clearance

H - Confirm Switch

I - Crop Modifiers Menu

• Threshing Speed (C)
  • Settings between 200 - 1000 rpm, increments of 10 rpm
• Threshing Clearance (D)
  • Settings between 0 - 60 mm, increments of 1 mm
• Fan Speed (E)
  • Settings between 620 - 1200 rpm, increments of 10 rpm
• Chaffer Clearance (F)
  • Settings between 0 - 32 mm, increments of 1 mm
• Sieve Clearance (G)
  • Settings between 0 - 32 mm, increments of 1 mm

When desired setting is highlighted, press confirm switch (H).

Rotate display/setpoint until desired settings are reached and press confirm switch to save values.

Change Crop Modifiers

Rotate selection dial until crop modifiers menu (I) is highlighted and press confirm switch.

Rotate display setpoint to choose between the following:

• Default - displays factory default settings for selected crops.
• Dry (Default) - displays factory default settings for corn.
• Wet (Default) - displays factory default settings for corn.
• New - select when a set of custom/personal crop settings will be entered.
• Clean Out - displays factory default settings allowing machine to be cleaned out.

Once desired crop modifier is chosen, press confirm switch.

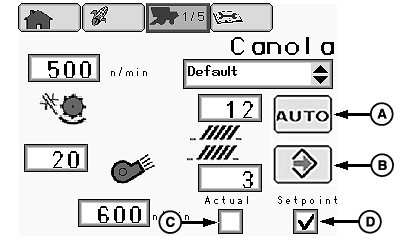

Auto or Save Icon

H87035-UN-10JAN07

A - Auto Icon

B - Save Icon

C - Actual Box

D - Setpoint Box

• Auto Icon - Desired machine settings are chosen by operator and will automatically adjust to settings shown on CommandCenter display.
• Save Icon - Allows operator to save personal machine settings if new was chosen from crop modifiers menu. NOTE: One set of personal settings may be saved for each crop and named "Custom 1". An additional nine sets of personal settings may be saved as well. These nine sets may be distributed among different crops as required. When one of these sets is used, it will be named starting with "Custom 2" (example: second set of personal settings for CORN and WHEAT will both be named "Custom 2"). Third set of personal settings for CORN will be named "Custom 3". Personalizing machine settings will not override factory settings.


Determine which setting you want to choose and press confirm switch.

Actual or Setpoint Box

Rotate selection dial until actual box (C) or setpoint box (D) is highlighted.

• Actual Box - When actual box is checked, automatic adjust settings will not work. Allows operator to change settings one at a time instead of the machine automatically adjusting every setting again.
• Setpoint Box - When setpoint box is checked, automatic adjust settings are active. Allows operator to change settings and allows the machine to automatically adjust to these settings.

Determine which box you want to choose and press confirm switch. Highlighted box will display a checkmark indicating which was selected.
