CLIMATRAK Precleaner—Cleaning

CAUTION: Shut OFF engine, set parking brake and remove key.

IMPORTANT: Precleaner is not removable and must be cleaned without removing from machine.

H85721
H85721-UN-18APR06

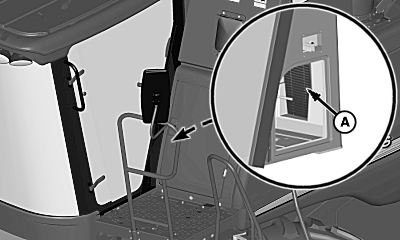

A - Precleaner

Remove fresh air filter to access precleaner (A). Hole in floor under precleaner must be kept open.

OUO6075,0000D6E-19-20071218
