CLIMATRAK Fresh Air Filter—Removing

IMPORTANT: Do not overtighten knob.

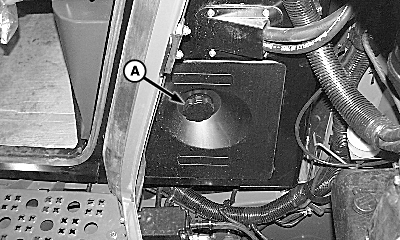

H76202-UN-28APR03

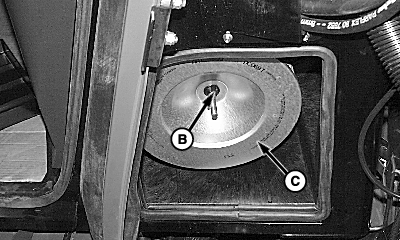

H76203-UN-28APR03

A - Knob

B - Wing Nut

C - Fresh air filter

Every 50 hours check fresh air filter. In dusty conditions, check daily.

Loosen knob (A) and remove access cover.

Remove wing nut (B) and pull out and clean fresh air filter (C).

Install in reverse order.
