Recirculating Filter—Removing

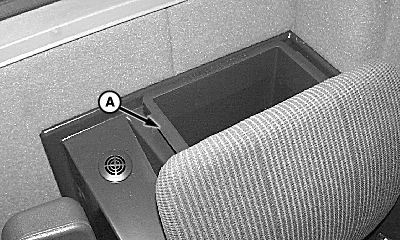

H76143-UN-24APR03

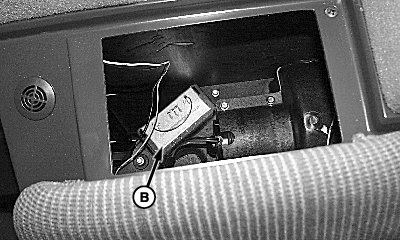

H76142-UN-24APR03

A - Storage Tray

B - Recirculating Filter

Every 200 hours check recirculating filter. In dusty conditions, check daily.

Lift out tray (A). Reach in opening and pull recirculating filter (B) out.

When replacing recirculating filter, it should drop easily into place. Do not force filter in place. Be certain filter is install as shown on filter.
