Fire Extinguisher Locations

H65148
H65148-UN-31OCT00

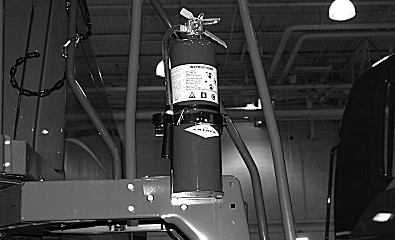

Front Fire Extinguisher Location

H82553
H82553-UN-28APR05

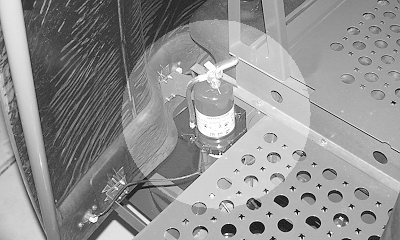

Rear Fire Extinguisher Location

Front fire extinguisher is located on the ladder platform.

Rear fire extinguisher is located under the right-hand gull wing door.

OUO6075,0003E77-19-20050308
