CLIMATRAK Inlet Panel—Cleaning

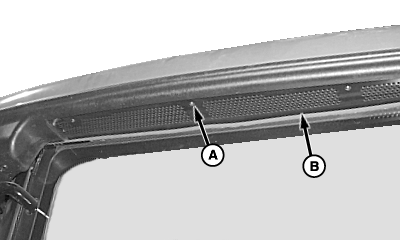

H82841
H82841-UN-28APR05

A - Screws

B - Panel

Clean this panel only when it looks plugged.

Remove screws (A) and remove panel (B). Air is brought in through the left-hand side panel only. The right-hand side panel does not provide cab air.

Clean with compressed air or water.

OUO6075,0003ECE-19-20050321
