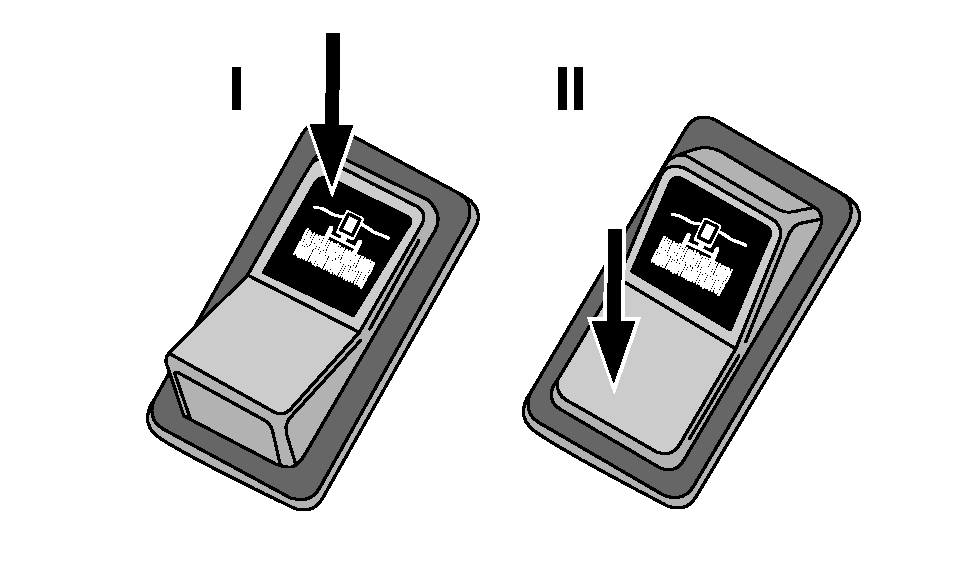

Road Safety Rocker Switch

IMPORTANT: For road travel, the road safety switch must be in the transport position (II). Before driving on public roads move the head and unloading auger to the transport position. This switch ensures that all hydraulic functions - with the exception of the steering system - are disconnected. With the road safety switch in the transport position, it is also not possible to engage the separator and head drives.

I-Field position
II-Transport position

AG,CO03622,1361 -19-01AUG05-1/1
