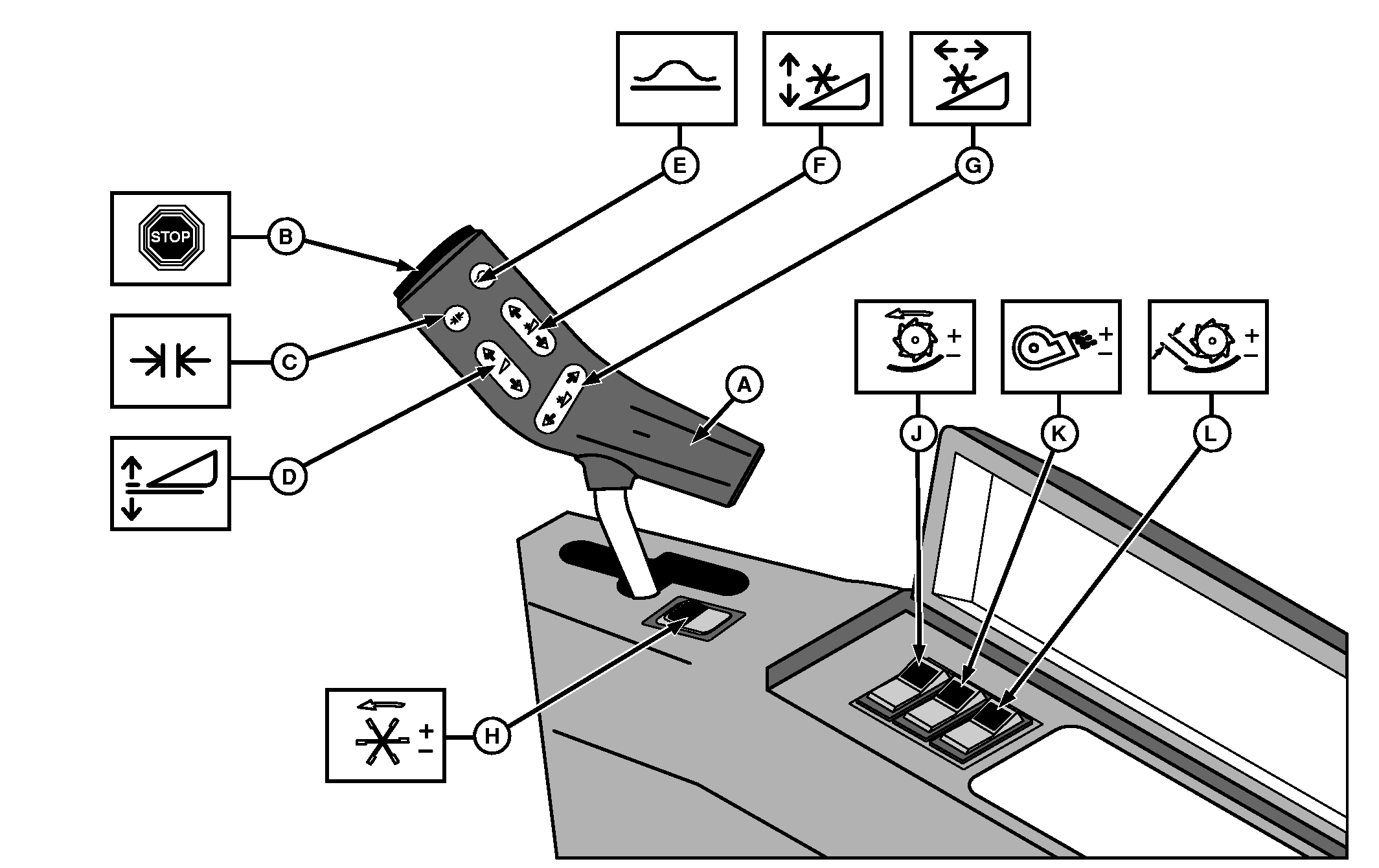

A-Multifunction control handle
B-Emergency stop switch
C-Knob*
D-Head raise/lower switch (2 speeds)
|
E-Knob*
F-Reel height adjust switch
G-Head tilt (manual mode) or reel horizontal adjustment switch
|
H-Reel speed switch
J-Threshing cylinder speed rocker switch
|
K-Fan speed rocker switch
L-Concave clearance adjustment rocker switch
|
