Head Lateral Tilt and Reel Horizontal Adjustment Rocker Switch

This function may be enabled with the road safety rocker switch in the field position and engine running.

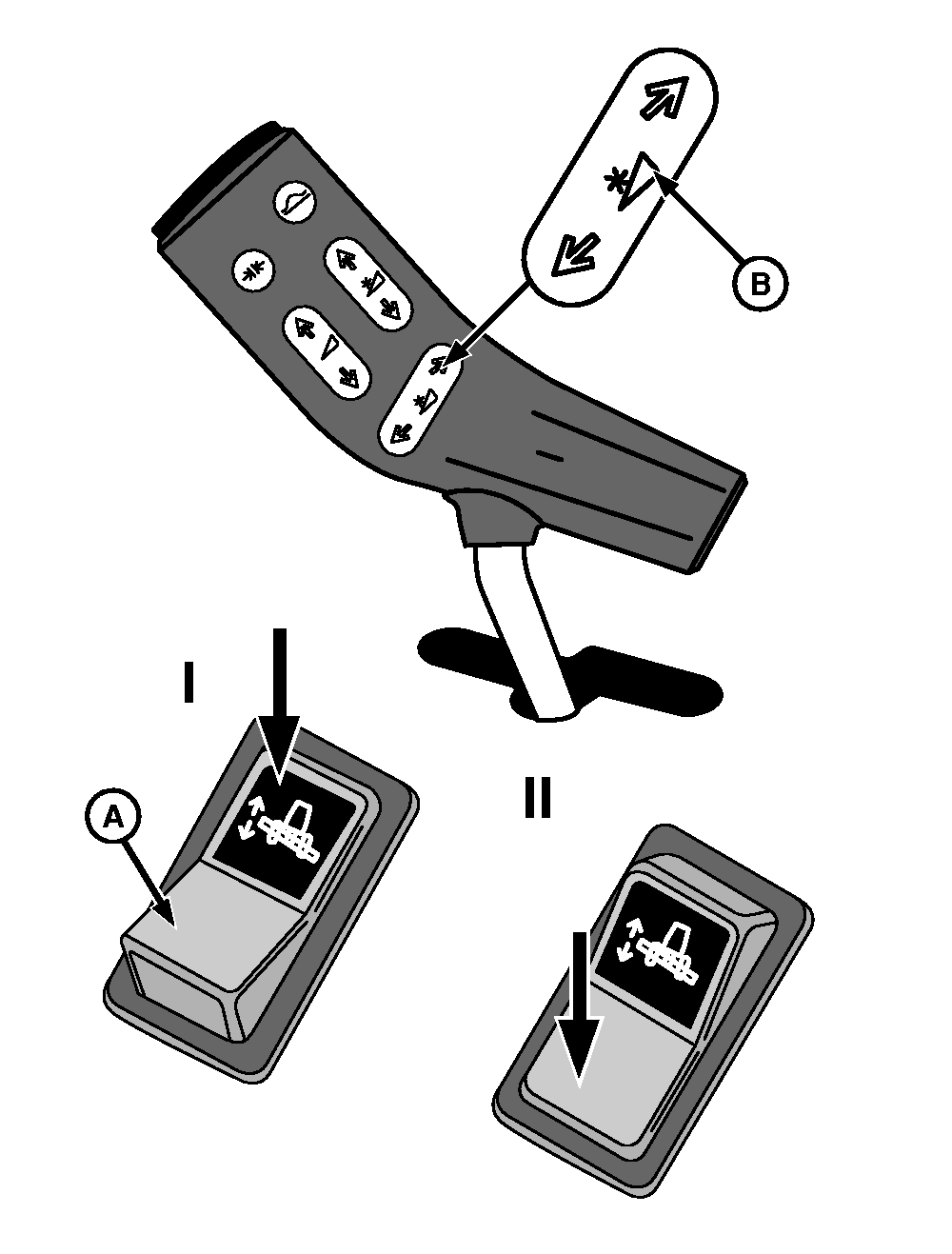

Rocker switch (A) on the console selects the function of switch (B) on the multifunction control handle as follows:

Manual Lateral Tilt Adjust

With rocker switch (A) in position (I), switch (B) adjusts head lateral tilt.

NOTE: If the automatic mode is engaged, using the manual tilt mode by means of switch (B) disengages automatic mode. Engage return-to-cut switch to reactivate automatic mode. See "Functions of Multifunction Control Handle Knobs".

Reel Horizontal Adjustment

With rocker switch (A) in position (II), switch (B) controls the horizontal adjustment of the reel.


I-Head lateral tilt adjust
II-Reel horizontal position adjust

CQ244980

AG,CO03622,1389 -19-01AUG05-1/1
