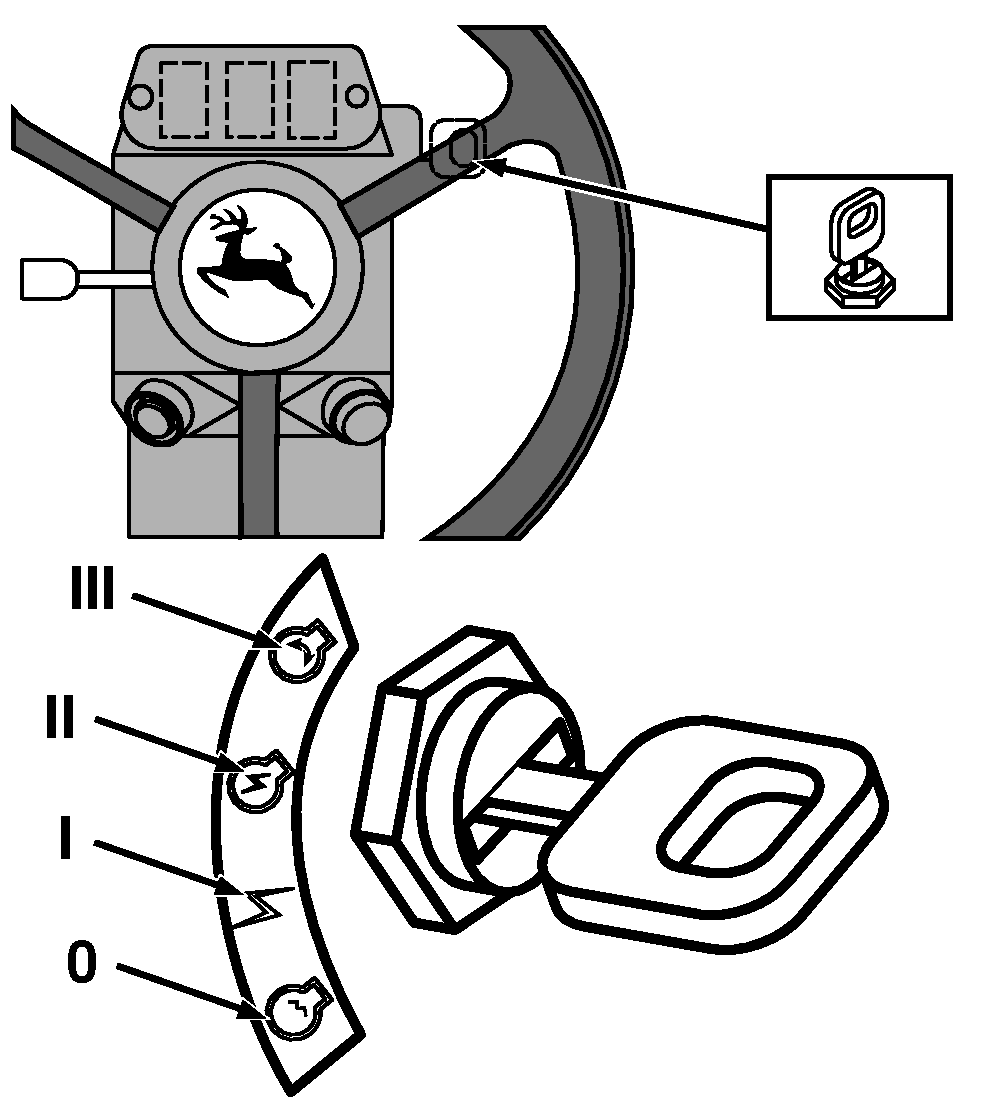

Starter Switch

NOTE: If one of the three drive switches (yellow) on the side panel is activated or the multi-function control handle is not in neutral position it will not be possible to start the combine.

The starter switch has 4 positions:

-Off
I-Circuits for radio/cassette player/CD player/Citizens' Band radio and INFO-TRAK all ON
II-Operating position
III-Starting the Engine

AG,CO03622,1397 -19-12JAN06-1/1
