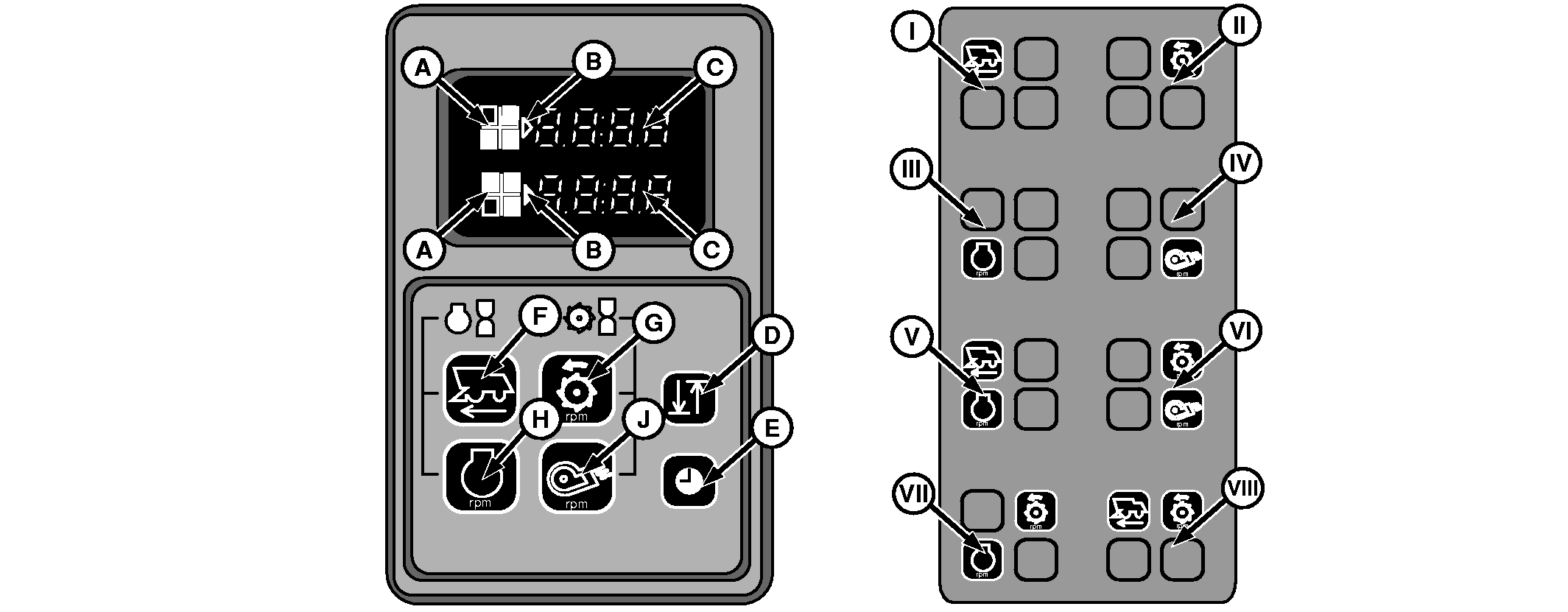

A - Position Indicator: indicates relationship between the (digital) display and the key or key combination (I-VII) pressed. When enabling the INFO-TRAK™ monitor (start up from position I or II), the position indicator will be in upper left-hand position.

B - Line Indicator: specifies the selected display where the cursor (A) indicates the corresponding function.

C - Display (4 digits): Displays the element previously called up.

Possibilities:
Ground and other speeds, operating or working hours.
Additional display: SERVICE information "SEU" and concave clearance.

Error codes:
In the event of a malfunction or operator error during combine operation or when running an automatic function, a two or three-digit number followed by an E (Error) is displayed. For example: 234 E .

D - Line Selector: Selects the display

E - Clock: Press this key to display the time.

F - Ground speed display key (I).

G - Cylinder speed display key (II).

H - Engine speed display key (III).

J - Fan speed display key (IV) and enter key for calibration modes.

F + H - Key combination to display operating time (engine) (V).

G + J - Key combination to display operating time (cylinder) (VI).

G + H - Key combination to delete "SEU" SERVICE information (VII).

F + G - Key combination to enable input status (VIII).

D + and engine start up - ContourMaster diagnostic mode enabled.

E + ignition on - Setting clock
