Tire Rolling Radius Code

New Tire Rolling Radius

Drive Tire Tire Rolling Radius (mm) Tire Rolling Radius (in)   Drive Tire Tire Rolling Radius (mm) Tire Rolling Radius (in)
28.1 - 26 (750/65 R26) 756 29.7   28L26 R1 12L 767 30.1
18.4 - 30 741 29.1   23.1/18 - 26 R2 10L 780 30.7
18.4 - 38 805 31.6   23.1/18 - 30 804 31.6
24.5 - 32 849 33.4   800/65R 32 (Radial) 861 33.8
620/75R 30 (Radial) 810 31.8   30.5L32 R1 857 33.7
(650/75 R32) 863 33.9   STEEL TRACK 315 12.4
28.1/18 - 26 R1 14L 761 29.9



AG,CO03622,1445 -19-14JUL06-1/2

Determining Rolling Radius of Used Tires
  • Combine on solid ground.
  • Cutting platform connected.
  • Correct tire pressures.
  • Combine steering wheels in straight-ahead position.

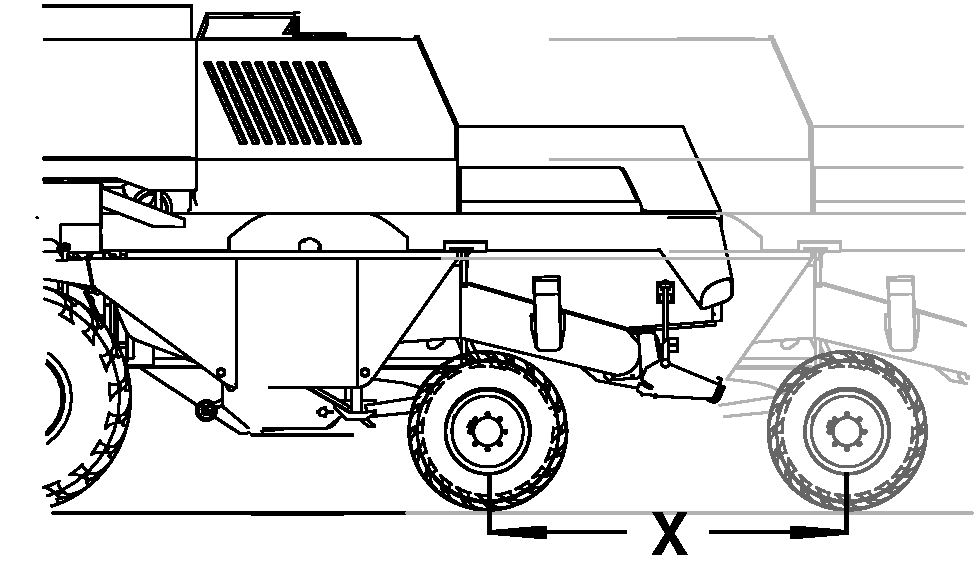

1. Place mark on tire and ground. Marks must be in contact with each other.
2. Drive combine until marked tire has completed one revolution.
3. Transfer mark on tire to ground.
4. Measure distance (X) between ground marks. The distance (X) must be measured in inches for combines with machine code 83. The distance (X) must be measured in millimeters for combines with machine code 103.
5. Divide measured distance (X) by 6.28 .

Include value shown on INFO-TRAK monitor.


CQ245710

AG,CO03622,1445 -19-14JUL06-2/2
