Work Lights on Cab Roof and Unloading Auger

The two outside work lights (A) are factory-adjusted to the width of 6.10 m (20 feet). If necessary, adjust the width according to the head used.

The work lights (B) illuminate the head center.

The work light (C) illuminates the unloading auger.

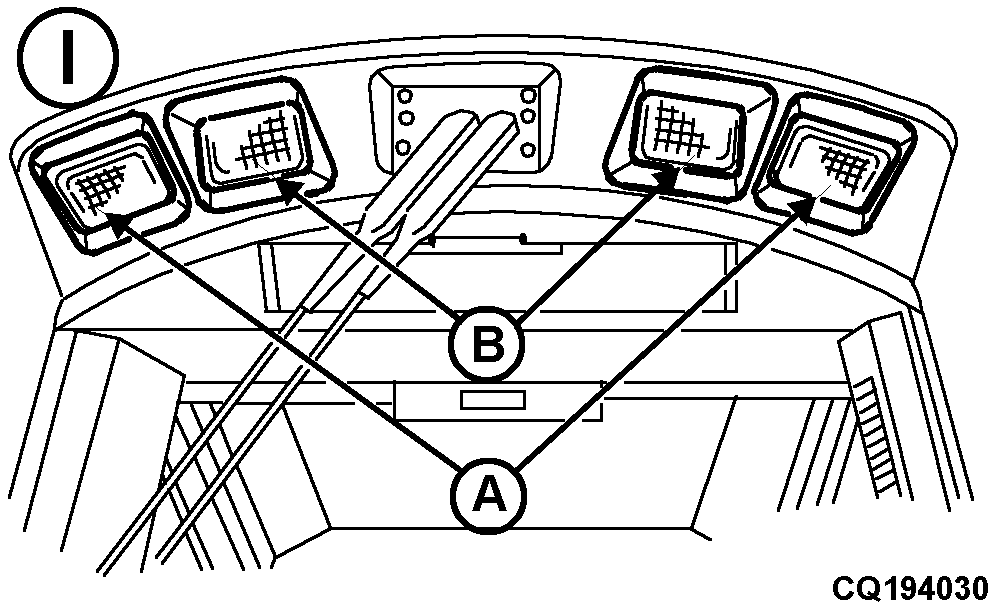

I-Work lights on cab roof

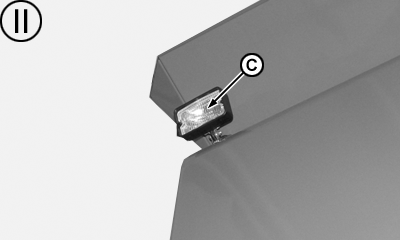

II-Work lights on unloading auger

AG,CO03622,1466 -19-01AUG05-1/1
