Rocker Switch for Work Lights on Operator's Platform and Outside Mirror Arms

The two additional work lights on the operator's platform (inner lights), the work lights on the mirror arms and the rear lights can only be switched on when the road safety rocker switch is in the field position.

CAUTION: Work lights must only be enabled during field operation.

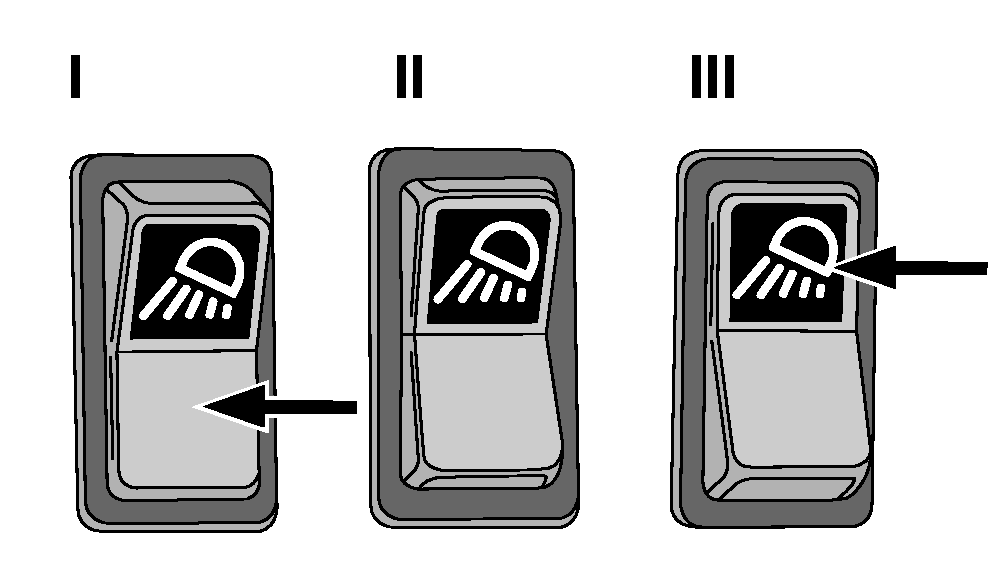

I-Disabled
II-Work lights on operator's platform and rear lights enabled
III-Work lights on outside mirror arms enabled

AG,CO03622,1487 -19-01AUG05-1/1
