Steering Column Tilt and Height Adjustment

CAUTION: Adjust steering column only when combine is stopped.

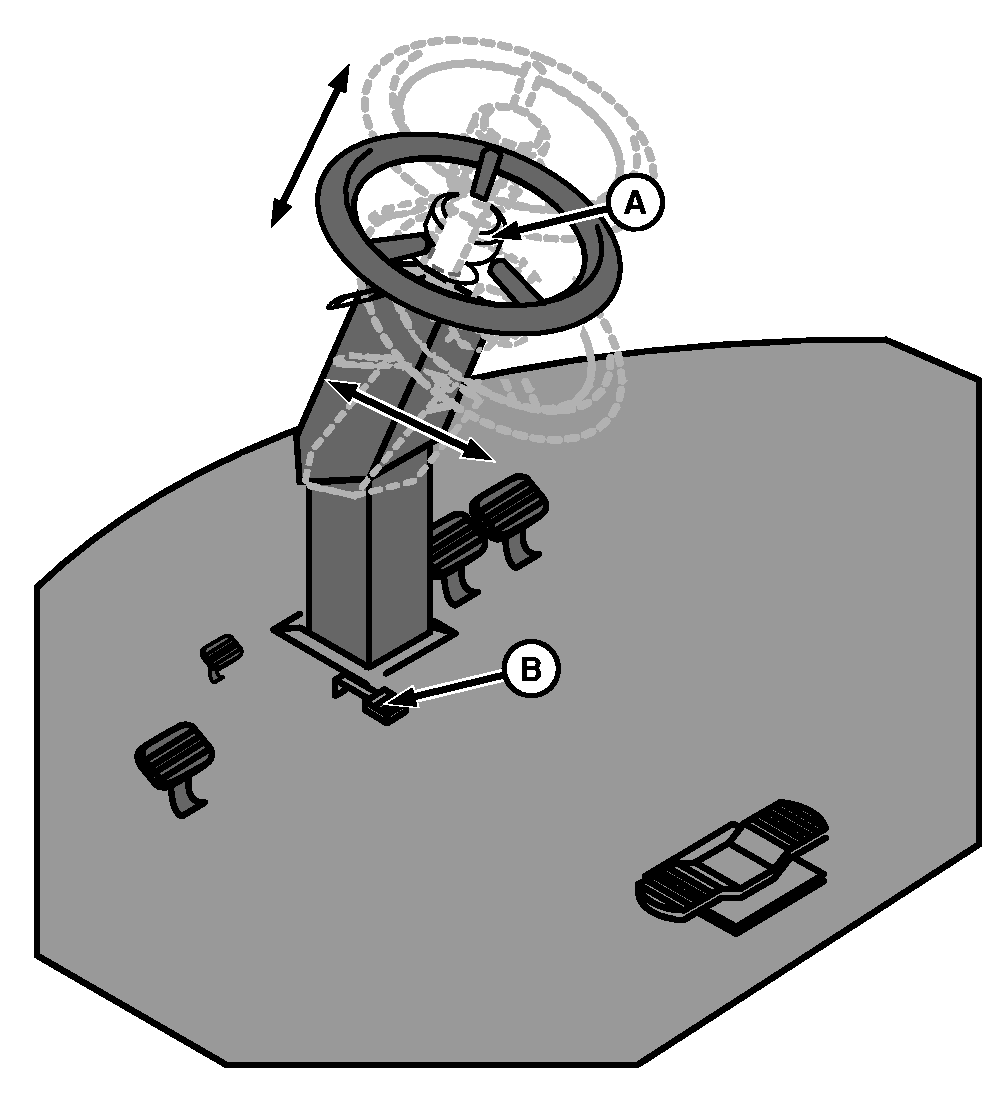

Loosen steering hub (A). Raise or lower steering wheel to required position. Tighten hub to fix steering wheel in required position.

NOTE: The hub need only be lightly tightened.

The column is spring loaded to the upright position. Do not step on pedal without securing the steering wheel with both hands.

Press pedal (B) to release steering column lock. Move column to required position. The column locks when pedal is released.
