Operating Foot Brakes

During road travel:

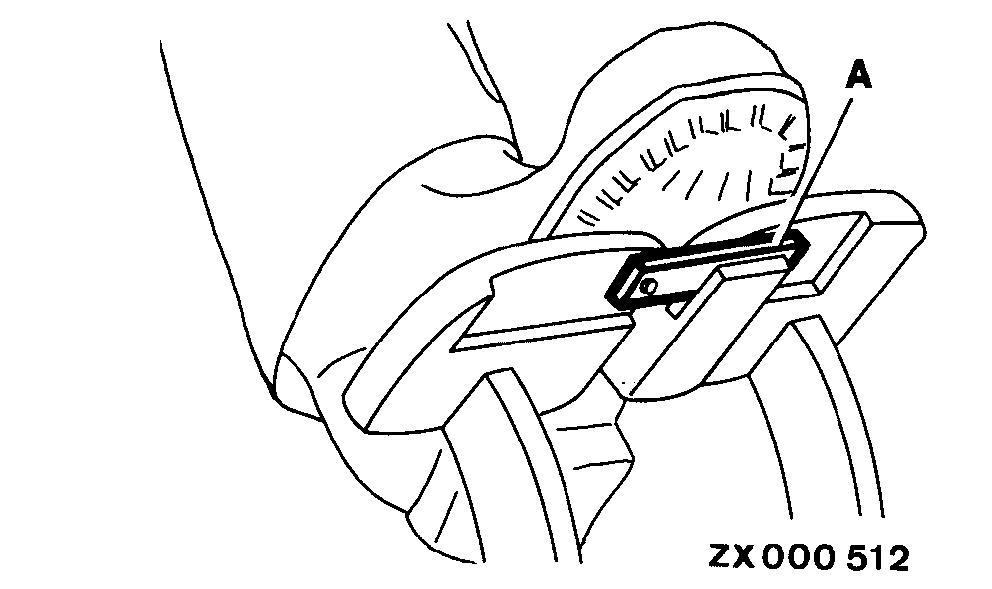

causym CAUTION: For safety reasons, always couple the two brake pedals by means of pedal coupler (A) when driving on public roads. This ensures the brakes are enabled together.

During field travel:

causym CAUTION: To stop combine, always depress both brake pedals simultaneously.

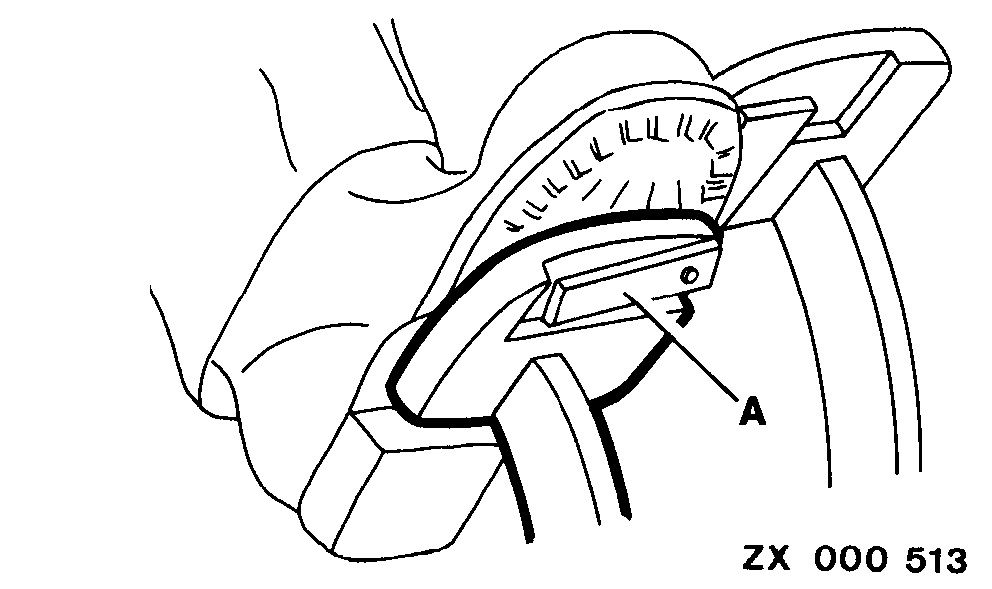

When negotiating sharp turns, use individual brakes to assist steering. For this purpose, disengage pedal coupler (A).

ZX000512
ZX000513

AG,CO03622,1526 -19-01AUG05-1/1
