Avoid Overheating of Hydrostatic System

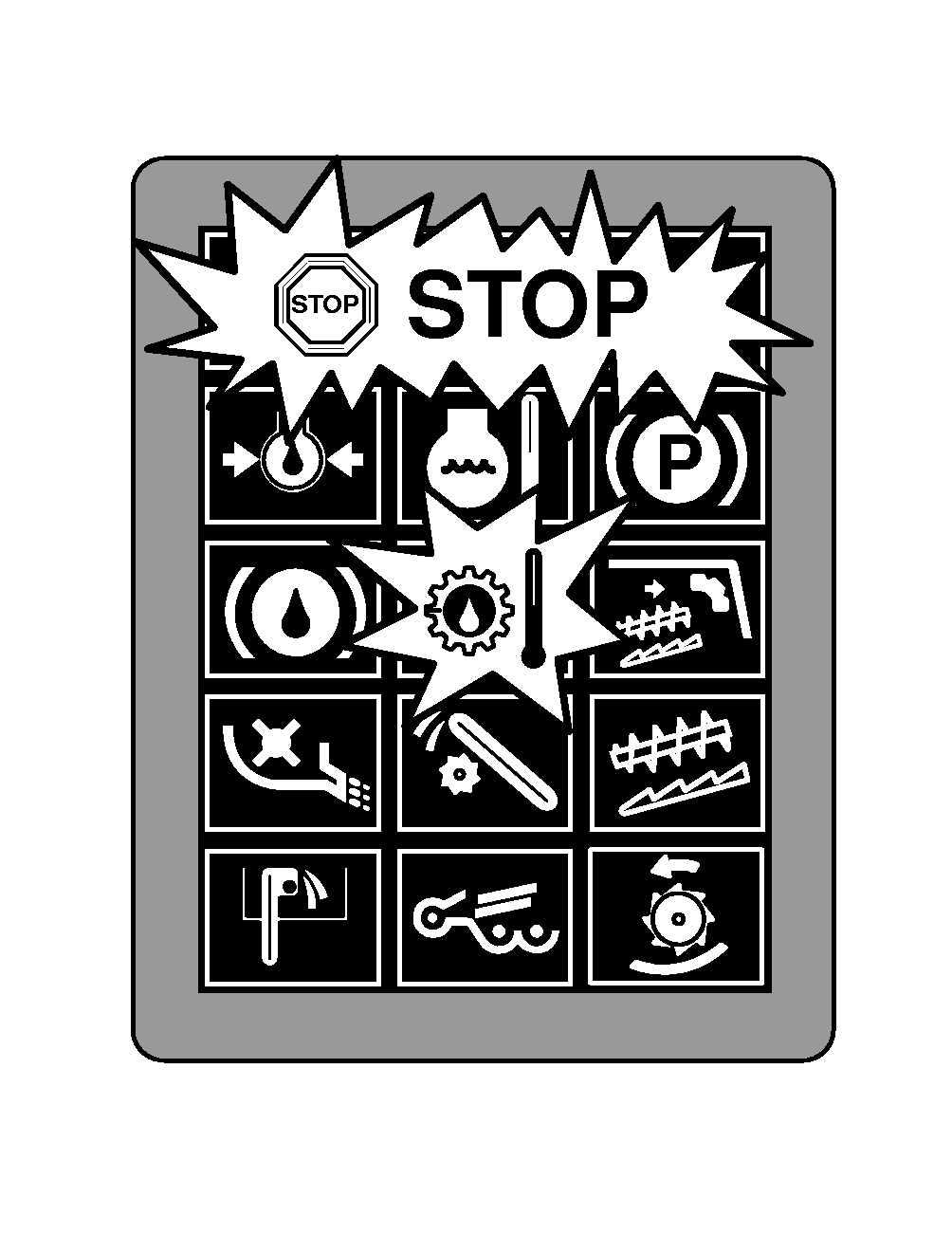

When hydrostatic oil temperature increases, the indicator light and "STOP" warning light glow and an intermittent warning signal sounds.

In this situation, reduce speed in order to increase the efficiency of the hydrostatic system and lower oil temperature.

IMPORTANT: If the hydrostatic drive stalls, never wait more than 5 seconds before shifting the multifunction control handle back to "Neutral". Reduce speed immediately.

NOTE: Drive wheel torque depends on oil pressure in hydrostatic system. If the pressure requirement exceeds the pressure in the hydrostatic system, a pressure release valve will open and the combine harvester will stop. As soon as the pressure demand drops (i.e. a lower speed range is selected), the combine harvester will travel normally again.

AG,CO03622,1532 -19-16AUG05-1/1
