Separator Drive Rocker Switch (with Operating Lock)

NOTE: With this rocker switch enabled, the engine starter system is blocked.

Requirements:

  • Engine at low idle.
  • Road safety rocker switch in field position.

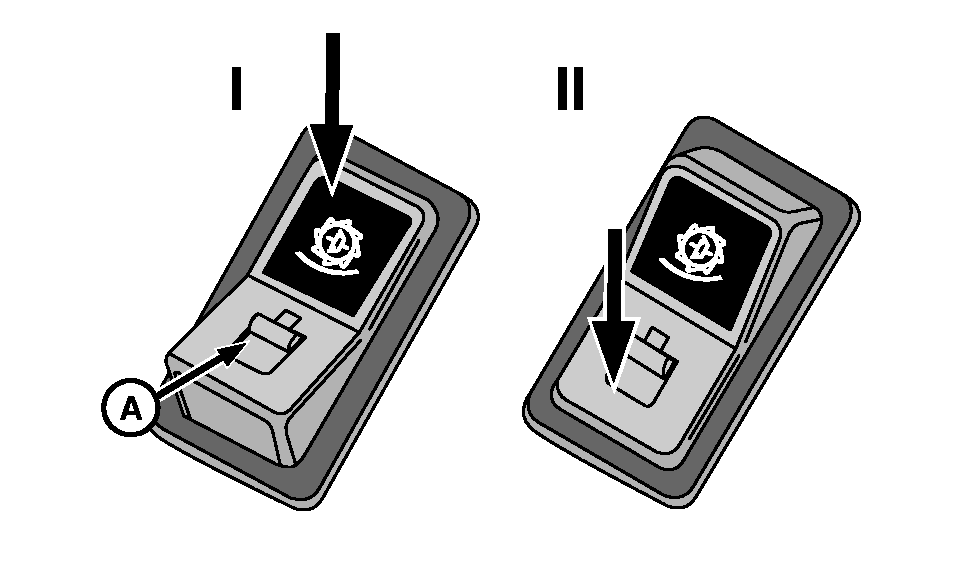

To engage separator drive (i):

Push operating lock (A) upwards and depress upper part of rocker switch (symbol).

To disengage separator drive (ii):

Depress lower part of rocker switch.

CQ244860


I-Separator engaged
II-Separator disengaged

AG,CO03622,1547 -19-01AUG05-1/1
