Slope Master System

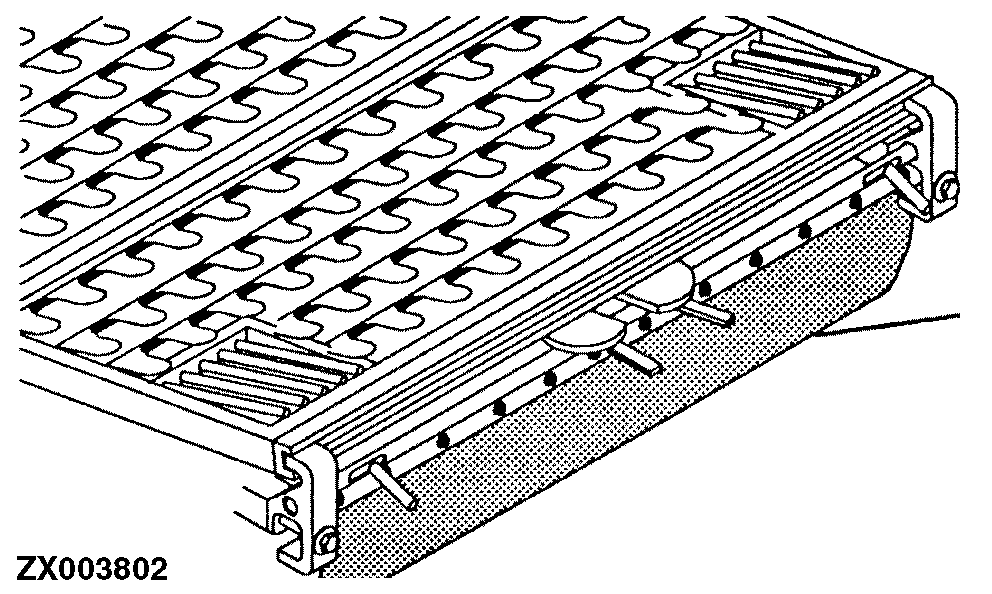

When operating the combine on a slope, special inserts at the left-hand and right-hand sides of the chaffer extension collect grain rolling across the separator and return it via tailings elevator.

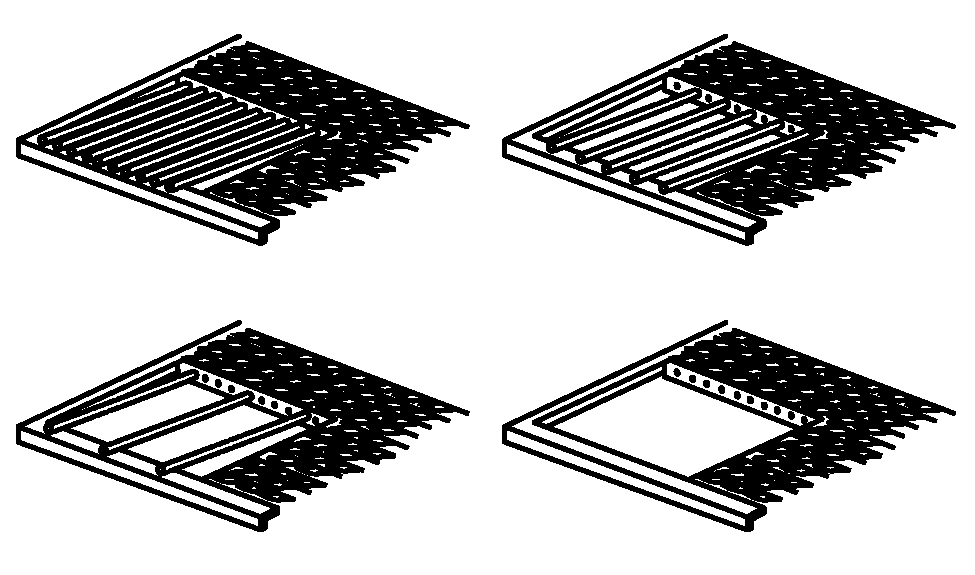

Vary the quantity of tines to suit harvesting conditions, type of crop and combine tilt by adding or removing tines. The combine is delivered from the factory with 11 tines installed on chaffer extension.

Any change in the number of tines primarily affects the amount of tailings; i.e. if no tines or only a few tines are installed, a high percentage of tailings will occur; if all the tines are installed, very little tailings occur.

Consult "Slope Master System for Hilly Terrain" to find out how to remove tines.

AG,CO03622,1573 -19-19SEP05-1/1
