Adjusting Floating Roller Height-300 Series Feeder House

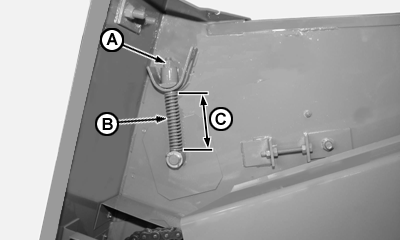

Adjust spring (B) length (C) through nut (A), on both sides of feeder house.

Crop Length (C):
For large grain 107-113 mm (4.2-4.45 in.)
For medium and small grain 137-143 mm (5.39-5.63 in.)




A-Adjusting Nuts
B-Spring
C-Spring length

CQ246640

AG,CO03622,1635 -19-22MAY06-1/1
