Opening Stone Trap

CAUTION: Watch out for falling stones when opening the stone trap.

Periodically clean the stone trap.

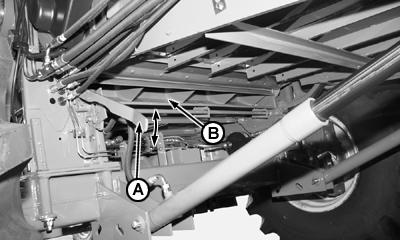

When lever (A) is in the "down" position, the stone trap (B) is closed.

- To clean the stone trap, pull lever (A) upwards to swing down bottom plate (B). Stone strap opens downwards.

Pull lever (A) downwards. A spring-loaded bolt holds the lever in this position.

AG,CO03622,1637 -19-01AUG05-1/1
