Cab Fan Rotary Switch

IMPORTANT: Always switch on fan before heating or air conditioning system is engaged.

A four-speed rotary switch controls the fan, which slightly pressurizes the cab. To switch on fan (only possible with ignition turned on), turn rotary switch clockwise.

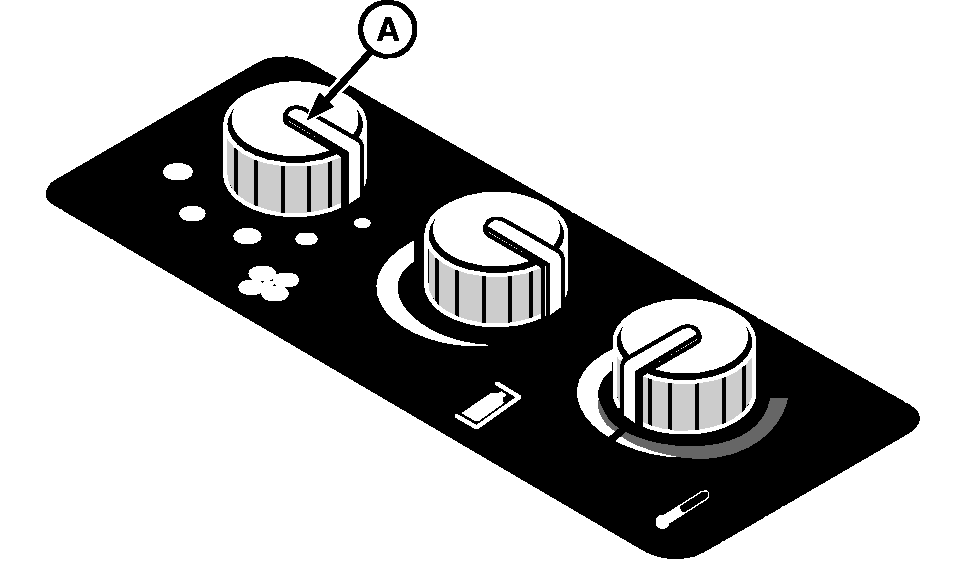

Illustrated position - Fan disengaged

Fan speed increases by turning rotary switch (A) clockwise.

AG,CO03622,1642 -19-01AUG05-1/1
