Rotary Switch - Air Conditioning/Heater

IMPORTANT: When ceasing the day's operation, disengage the air conditioning system and leave the fan engaged for a further 10 minutes. This will help prevent the system from generating odors at a later date.

I - Air Conditioning System

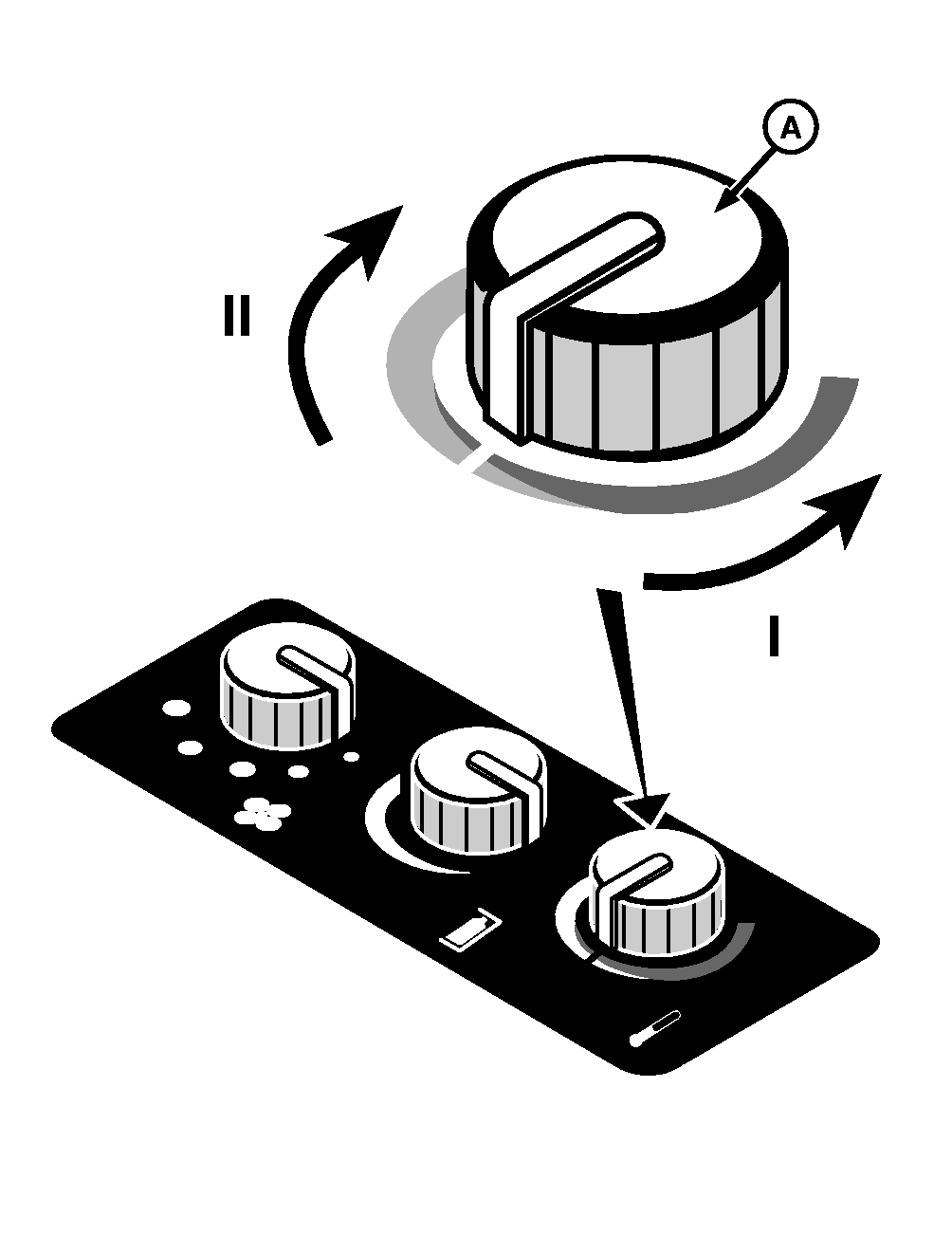

Before switching on the air conditioning system, the fan must be operating. Turn rotary switch (A) counterclockwise to engage air conditioning. Turning switch all the way counterclockwise will provide maximum cooling.

IMPORTANT: Operate air conditioning system several times a year - even in winter - to lubricate all moving parts of the system.

II - Heater

Before switching on the heater, the fan must be operating. Turning rotary switch clockwise will open heater valve. Turn switch all the way clockwise for maximum heating effect.

Also refer to "Demoisturizer Rocker Switch".

AG,CO03622,1644 -19-01AUG05-1/1
