Chaffer Extension

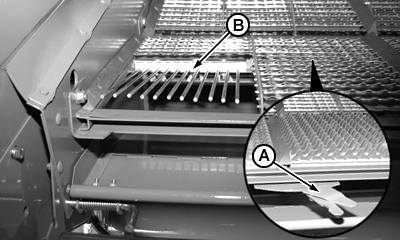

Chaffer extension is used to optimize corn harvesting. Lever (A) is used to adjust fins to minimize plugging caused by cob pieces.

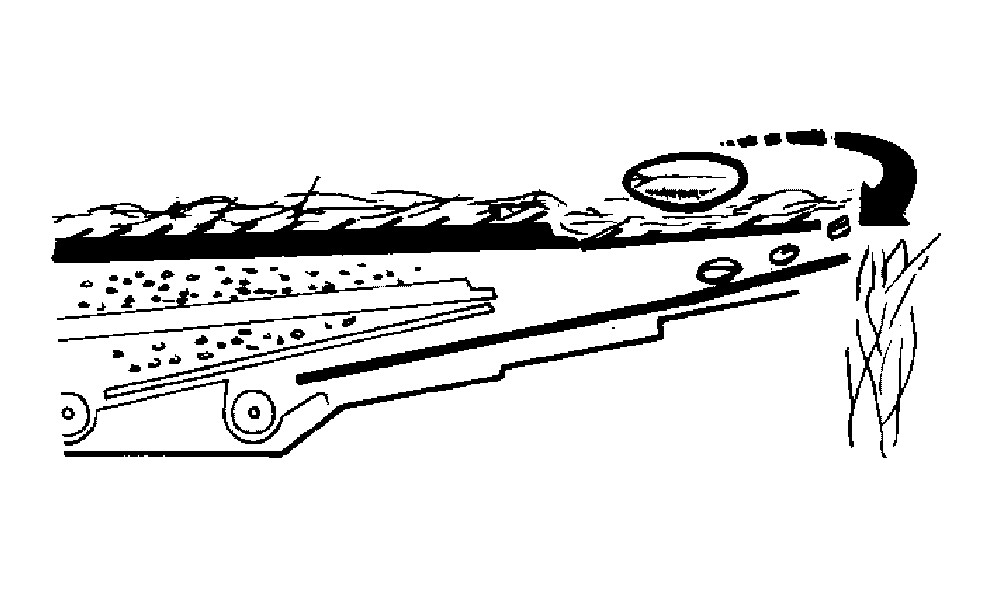

In hilly terrain the opening needs to be larger than normal. Use Slope Master System (B) for this operation. Consult more detailed information in section "Slope Master System".

NOTE: In extremely hilly terrain a chaffer extension for corn may be used.

AG,CO03622,1655 -19-17SEP05-1/1
