Grain Tank Inspection Hatch

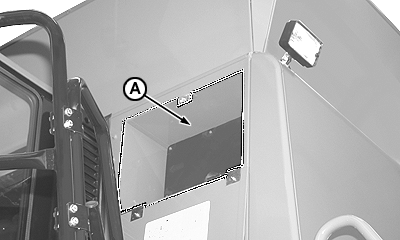

In the grain tank wall there is a hatch (A) to inspect the clean grain and remove samples, located immediately below the main electrical box.

Between the grain tank wall and the main electrical box, there is a space where a hand can be inserted to extract a clean grain sample.

NOTE: There is also a hatch behind the seat in the operator's cab through which grain in the grain tank can be inspected.

A-Inspection hatch

AG,CO03622,2027 -19-01AUG05-1/1
