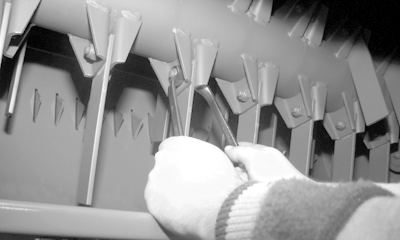

Replacement of Straw Chopper Knives

CAUTION: Always jam the impeller to prevent accidents when replacing knives.

IMPORTANT: Note the following to avoid unbalancing the straw chopper:

Excessive vibration may be caused by broken impeller knives. Immediately remove the broken knife and the knife that is directly opposite, and install replacement knives.

Do not sharpen knives. Replace knives only. This ensures that all the knives on the impeller weigh approximately the same.

Only use grade 10.9 bolts with self-locking nuts.

Specification

Mount bolts from left to right (facing the direction of forward travel).

AG,CO03622,2047 -19-01AUG05-1/1
