Grain Tank Lower Auger Cover Plates

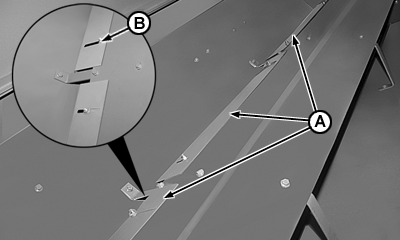

The cover plates (A) can be adjusted as required. Loosen nuts (B) to adjust.

NOTE: It is recommend that the covers are kept in a more closed position for wet conditions and more open for dry conditions.

The covers should be more closed on the right side (the clean grain elevator side).

AG,CO03622,2052 -19-01AUG05-1/1
