Brake Fluid for Brake System

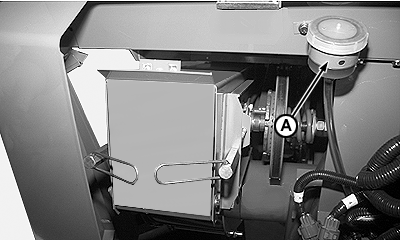

The brake fluid reservoir (A) is located at the front of the combine next to the tailings elevator.

IMPORTANT: Use only brake fluid that meets the SAE J 1703 (DOT 4) standard.

Consult capacity in the "Specifications" section.

AG,CO03622,2067 -19-25AUG06-1/1
