Checking Engine Oil Level

To prevent interruption of the circulation of lubrication oil when the combine is in an inclined position, never allow oil to drop below the minimum level.

IMPORTANT: It is vital to maintain the engine oil at the correct level to ensure a longer engine service life. Check the engine oil level when the engine is cool and the combine is parked on a flat surface.

Before removing dipstick, clean surrounding area thoroughly.

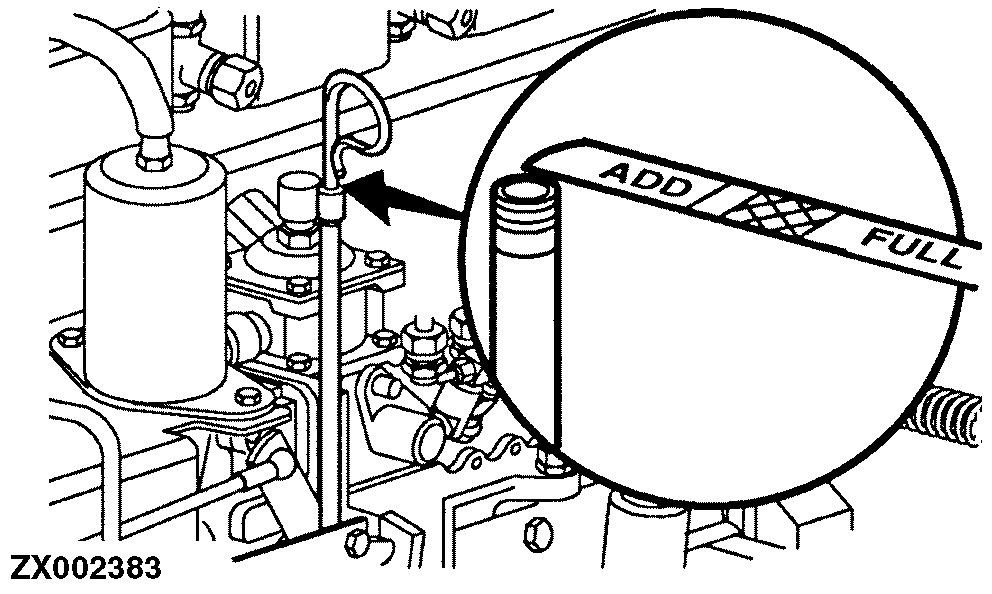

The oil level should be between the upper and lower marks on the dipstick.
