Replacement of Rotary Screen Knife Comb

causym CAUTION: Shut off engine and remove starter key.

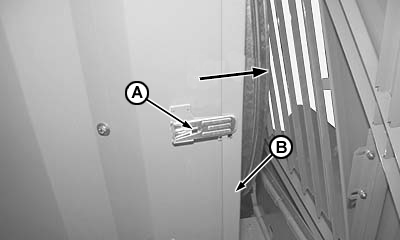

1. Remove locking clamp (A) and open rotary screen door (B).

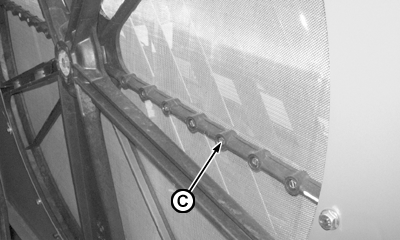

2. Remove screws (C).

3. Remove rotary screen knife comb.

CQ247100
CQ248510

AG,CO03622,2104 -19-21JUN06-1/1
