Changing Transmission Oil

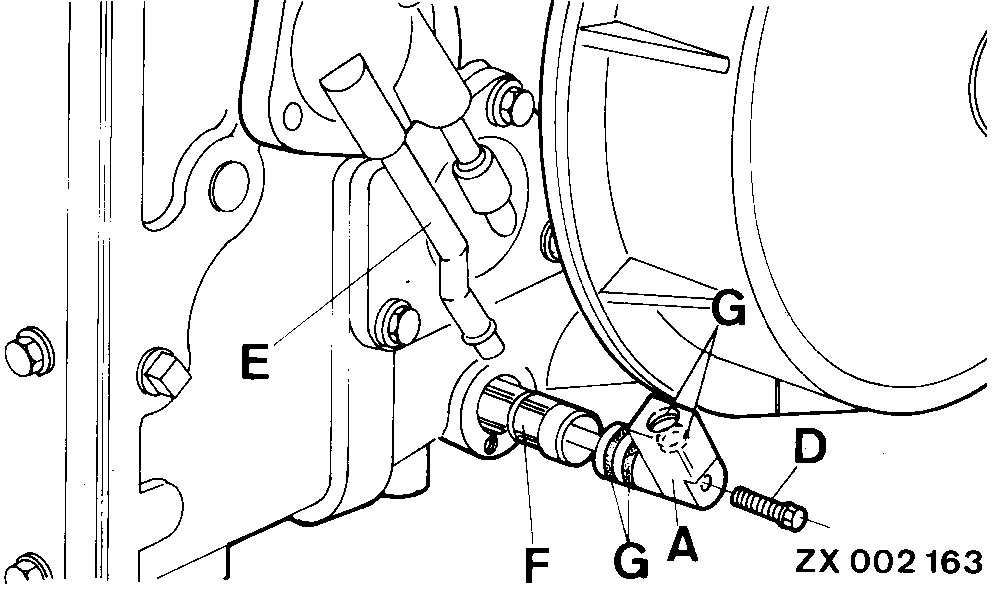

Remove bolt (D).

Remove cap (A) from transmission box and take out line (E).

Check filter (F) and rings (G), and replace if necessary.

IMPORTANT: When reinstalling, make sure filter (F) is seated correctly in transmission housing.

Recommended oil - SAE 90.

IMPORTANT: Always use specified oil.

Consult capacity in the "Specifications" section.

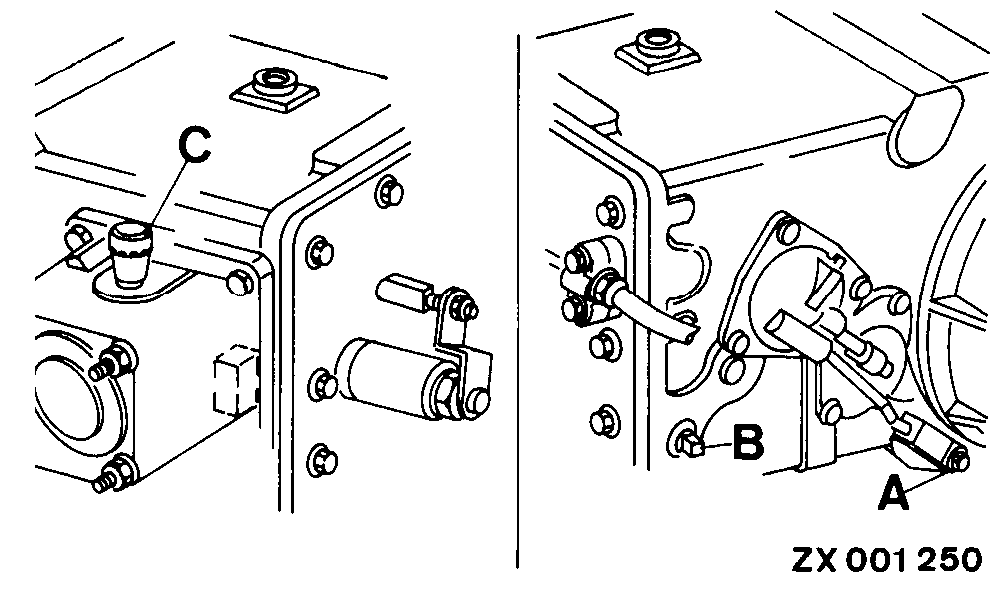

A-Cap
B-Check plug
C-Filler neck and bleed plug
D-Bolt
E-Line
F-Filter
G-Rings

AG,CO03622,2115 -19-01AUG05-1/1
