Compressed Air System Reservoir

The reservoir is located inside the front axle.

Maximum pressure: 570 kPa; 5.7 bar; 82.7 psi.

Drain off contaminants periodically.

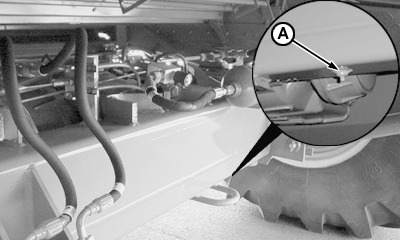

With the engine off, drain accumulated water by turning the drain valve (A) located on the lower left side of the front axle.

AG,CO03622,2120 -19-01FEB05-1/1
