Replacing Feeder House Drive Belt

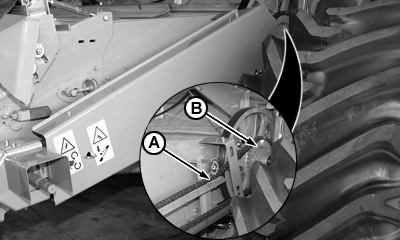

Remove feeder house chain shield. After loosening head drive chain (A), remove sprocket (B) from feeder house upper shaft.

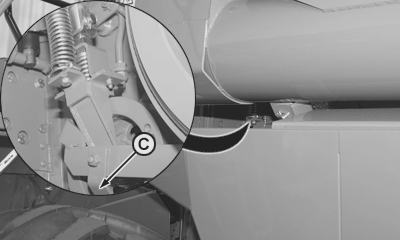

Remove guide (C).


A-Head Drive Chain
B-Sprocket
C-Guide

CQ247810
CQ247820

AG,CO03622,2135 -19-01AUG05-1/2

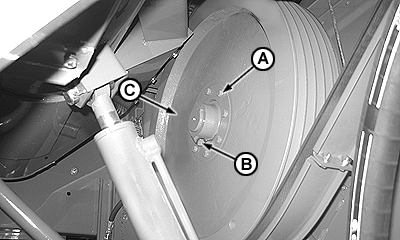

Remove retaining bolts (A), locking bolt (B) and beater pulley wheel (C). Replace belt.

causym CAUTION: Warning! This pulley wheel is heavy (approx. 40 kg [88 lb]) and difficult to handle.

CQ248560

AG,CO03622,2135 -19-01AUG05-2/2
