Adjusting Feeder House Hydraulic Reverser Chain Tension

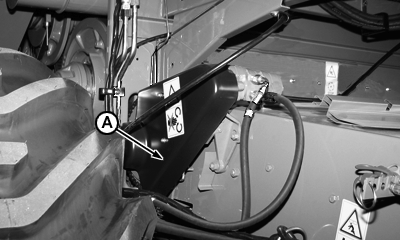

1. Remove shield (A).

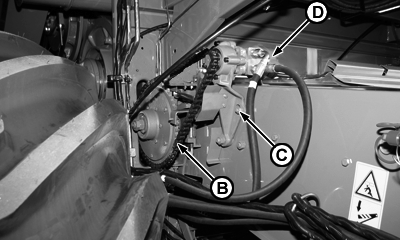

2. Loosen the three nuts (C) of bracket.

3. Swing hydraulic motor (D) forwards and adjust chain tension as described in "Chain Tensions" in this section.

4. Retighten nuts (C).

5. Remount shield (A).
