Adjusting Threshing Unit Drive Belt Guide

NOTE: To prevent accidents shut off engine before adjusting belt guide.

1. Start engine and engage threshing unit.

2. Turn off engine (with threshing unit engaged) and remove starter key.

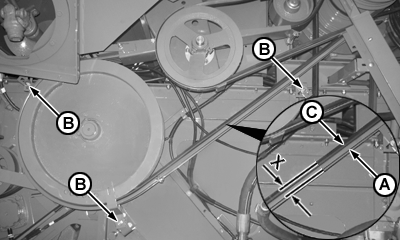

3. Adjust play (X) between belt guide (A) and belt (C). Adjust through bolts of supports (B).

Specification

Play between belt guide and threshing unit drive belt -Play 2-5 mm (0.08-0.2 in.)

CQ266590

AG,CO03622,2137 -19-05APR06-1/1
