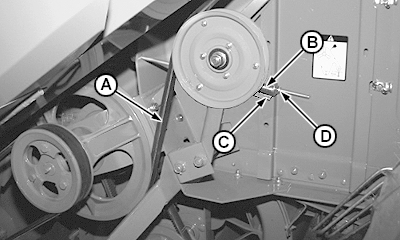

Belt tension (A) is correct when the length of spring (B) is equal to the length of tab (C). Effect adjustment by means of nut (D).
A-Belt B-Spring C-Indicator Tab D-Nut
AG,CO03622,2139 -19-01AUG05-1/1
