Adjusting Straw Walker Slip Clutch

The straw walkers are protected by a slip clutch.

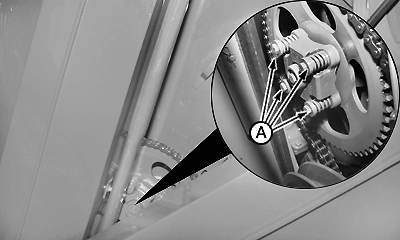

Adjust by tightening four nuts (A).

Specification

Nuts (A) -Torque  40 N·m (29 lb-ft)

CQ247900
