Adjusting Fan Variable Speed Drive Belt

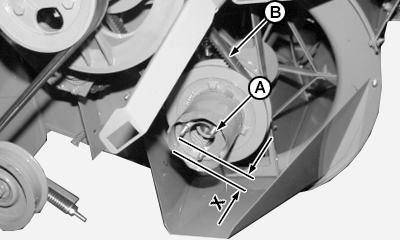

The fan drive belt (B) is correctly adjusted when the distance (X), as measured from the outer edge of the spring box to the spring retaining washer, is 20 to 30 mm (0.79 to 1.18 in.).

Use nuts (A) to adjust.

AG,CO03622,2142 -19-01AUG05-1/1
