Adjusting Tailings Elevator Drive Belt

The tailings elevator is driven by the beater pulley via the elevator slip clutch.

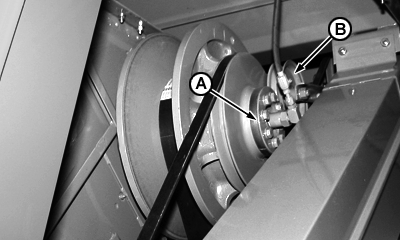

Belt (A) is automatically tensioned by the idler pulley wheel (B).

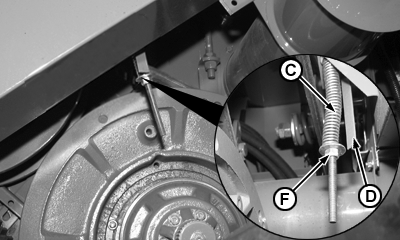

To obtain the appropriate tension, the spring backing washer (C) should be level with the indicator tab (D).

Effect adjustment with nut (F).


A-Belt
B-Idler pulley wheel
C-Spring
D-Indicator Tab
F-Nut

CQ248010
CQ248020

AG,CO03622,2144 -19-01AUG05-1/1
