Adjusting Clean Grain Elevator Slip Clutch

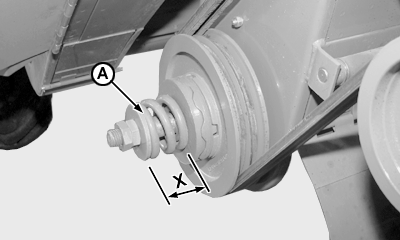

The slip clutch is correctly adjusted when the length (X) of spring (A) measures 51 mm (2 in.).

IMPORTANT: Measure at two distinct points with an angle of 180° between points.

NOTE: Check length according to section "Periodic Servicing and Lubrication" or every 50 engagements. Do not lubricate the slip clutch.

AG,CO03622,2147 -19-14JUN06-1/1
