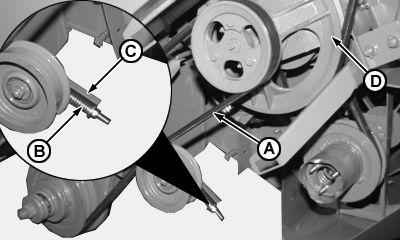

The clean grain elevator is driven by belt (A) from the straw walker drive (D).
The belt tension is correct when spring (B) is as long as indicator tab (C).
A-Belt B-Spring C-Indicator Tab D-Straw Walker Drive
AG,CO03622,2148 -19-17AUG05-1/1
