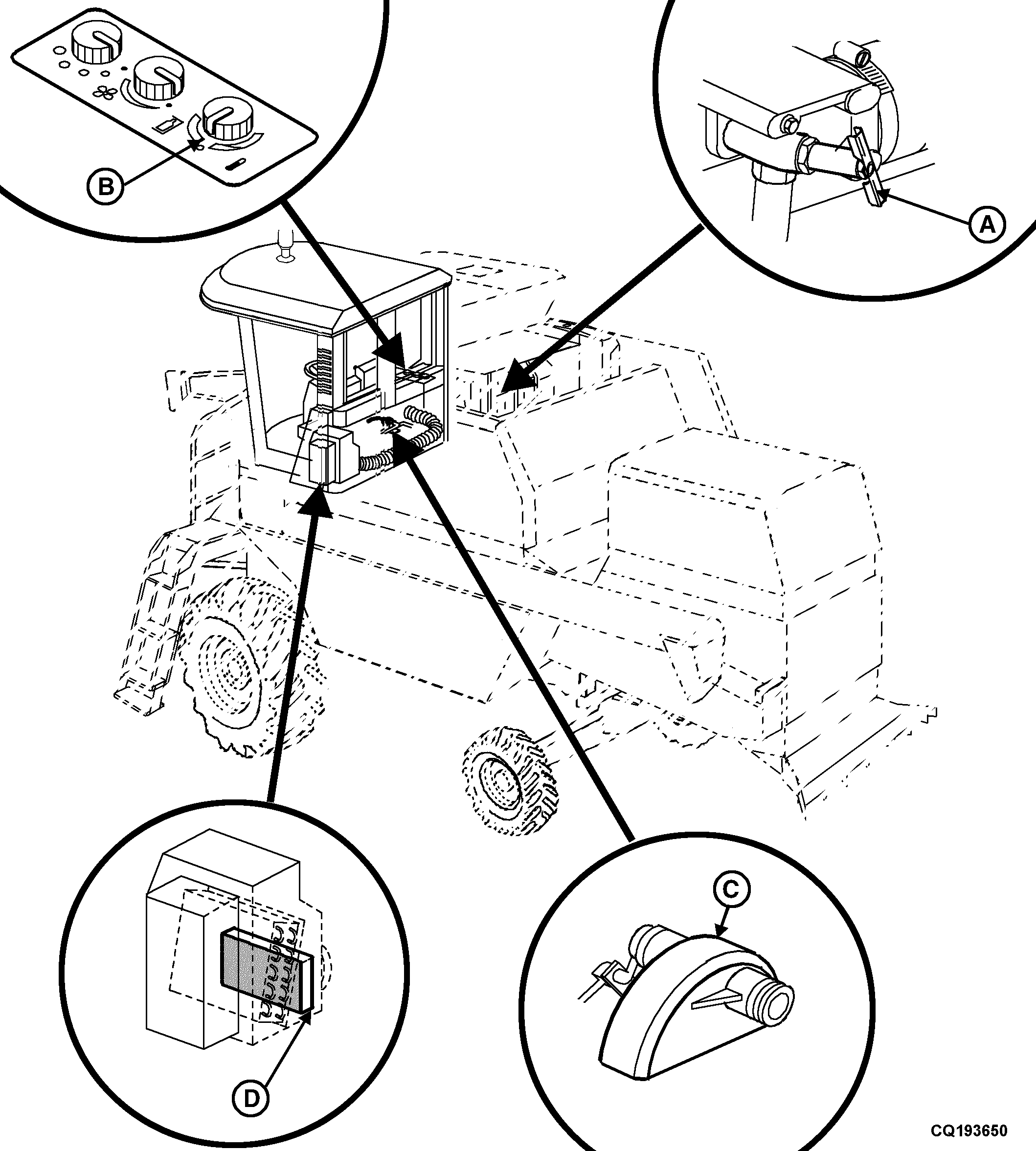

Heater Components

CQ193650

A-Heater valve at cylinder block

B-Air conditioning/heater rotary switch

C-Heater valve in cab

D-Radiator
