Low Pressure Switch

IMPORTANT: Use the highest comfortable fan speed and adjust the temperature to an intermediate setting. Do not operate the air conditioning system at maximum output when the fan is at its lowest speed setting.

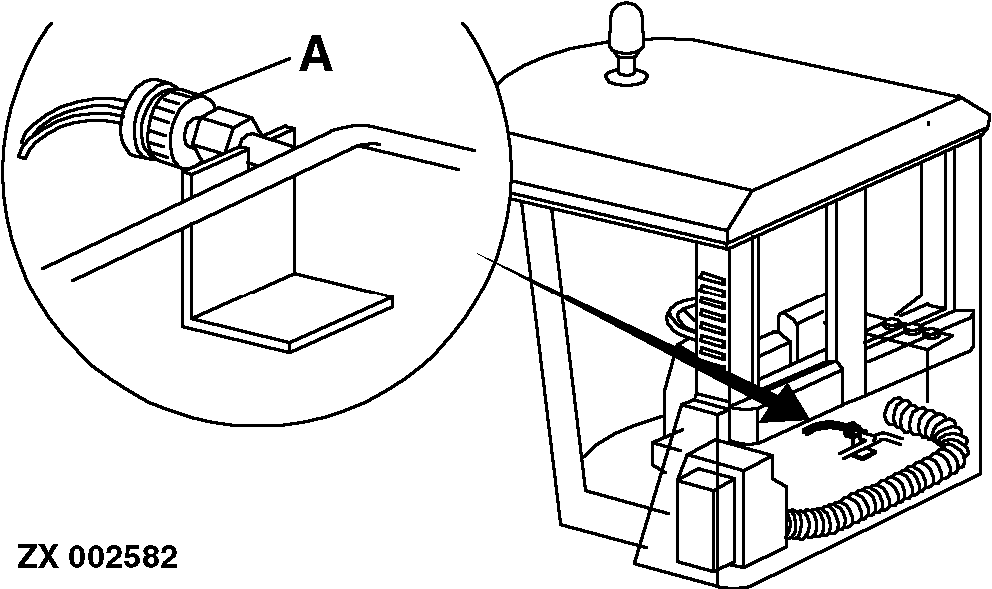

The air conditioning system is equipped with a low pressure switch (A) which switches off the system in the event of a refrigerant leak. Some leakage (a minimal amount) through air conditioning hoses cannot be avoided. Check refrigerant level every 100 hours of operation. When necessary, have system recharged by your John Deere dealer.

AG,CO03622,2161 -19-15MAR02-1/1
