High Pressure Switch

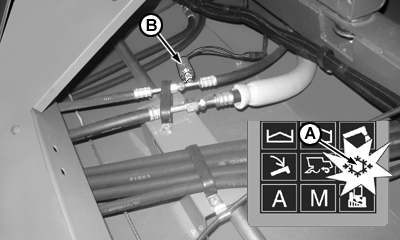

Light (A) indicates that the high pressure switch (B) has disengaged the air conditioning system. Stop the combine. Disconnect and clean the condenser. (See the "Service-Engine"section).

The switch is located under the lower cover of grain tank.

If the indicator light remains on after the condenser has been cleaned, see your John Deere dealer.

AG,CO03622,2162 -19-17AUG05-1/1
