Removing Cab Air Filter

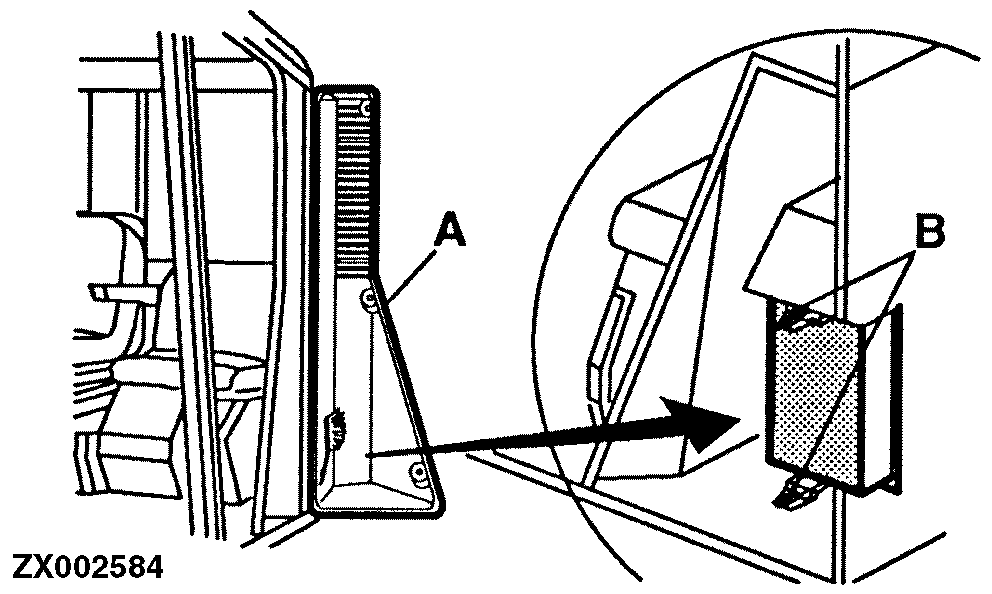

1. Open service cover (A).

2. Disengage fasteners (B).

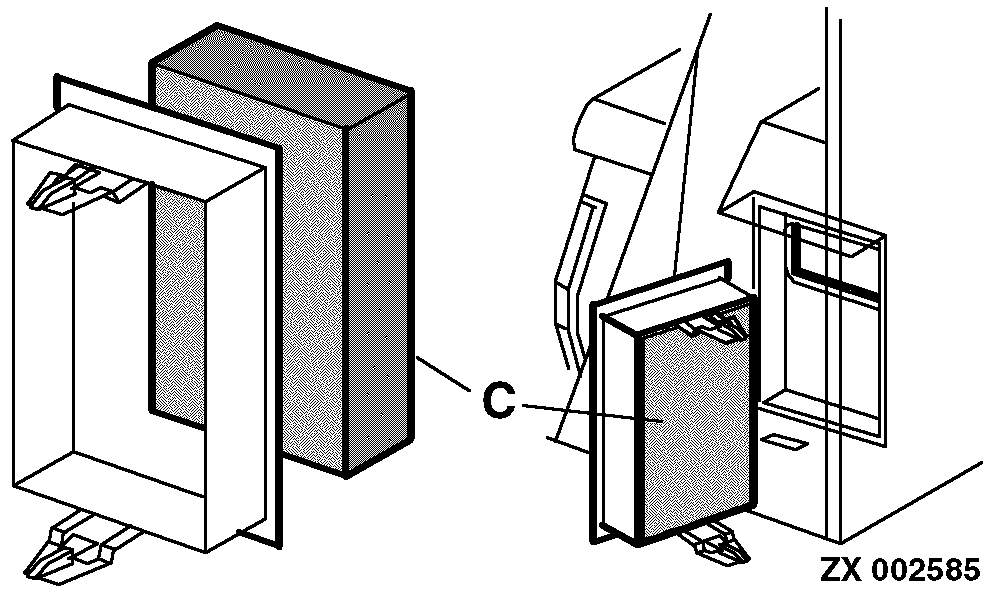

3. Lift out filter housing with element (C).

4. When reinstalling, make sure filter element is in correct position.

IMPORTANT: Replace air filter after the sixth cleansing.

ZX002584
ZX002585

AG,CO03622,2165 -19-20FEB06-1/1
