Cleaning Cab Air Filters

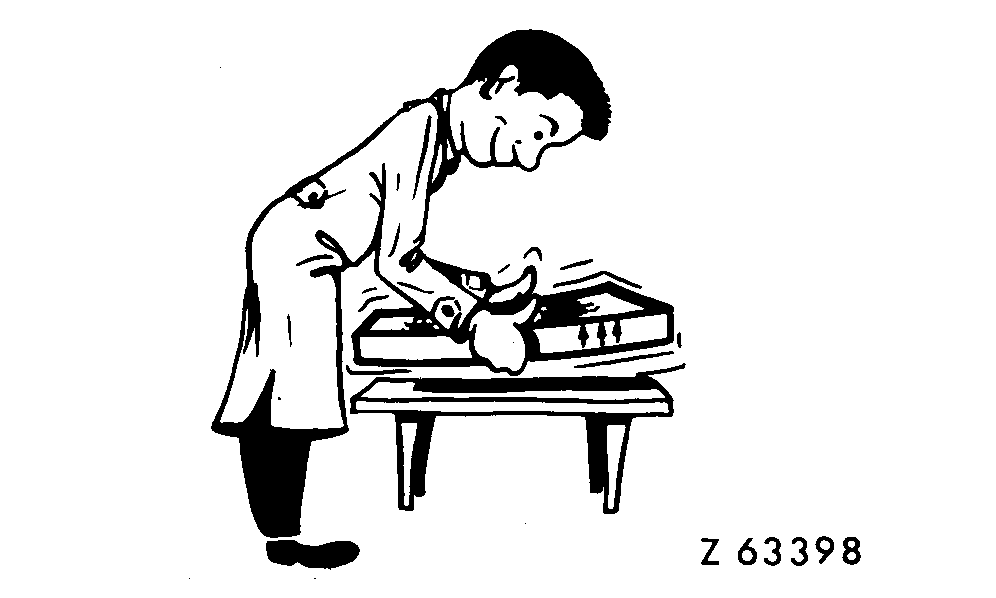

Temporary Cleaning

As a provisional measure during harvesting, tap element on palm of hand to remove major dirt build-up.

AG,CO03622,2166 -19-14MAR06-1/2

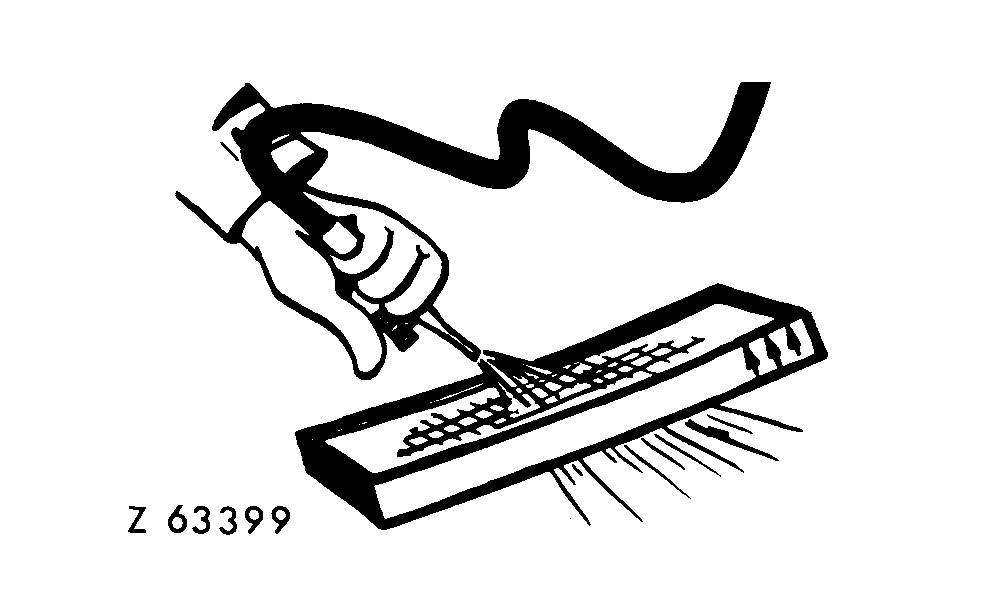

Cleaning with Compressed Air

Direct compressed air through filter in inside-out direction with maximum pressure of 200 kPa (2 bar; 30 psi).

AG,CO03622,2166 -19-14MAR06-2/2
