Hydraulic Connections-300 Series Feeder House

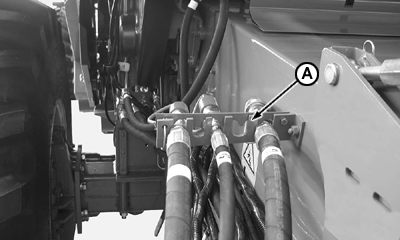

With header detached, the hydraulic hoses can be stored in the bracket (A) on the right-hand side of the feeder house. This will prevent them from damage and dirt contamination during transport.

IMPORTANT: After uncoupling the header or installing corn headers, it is recommended that the two reel drive (pressure and return) hoses are united. This allows oil to flow in the event that the switch is accidentally enabled.

AG,CO03622,2180 -19-13MAR06-1/1
