Removing Main Electrical Box

  • Remove access cover of main electrical box (not illustrated).
  • Loosen latches (A) on both sides of box.

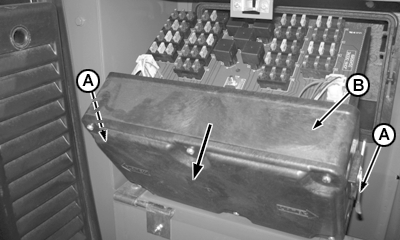

  • Slowly and carefully pull out the main electrical box (B) as illustrated.
CQ248130

AG,CO03622,2217 -19-01AUG05-1/1
