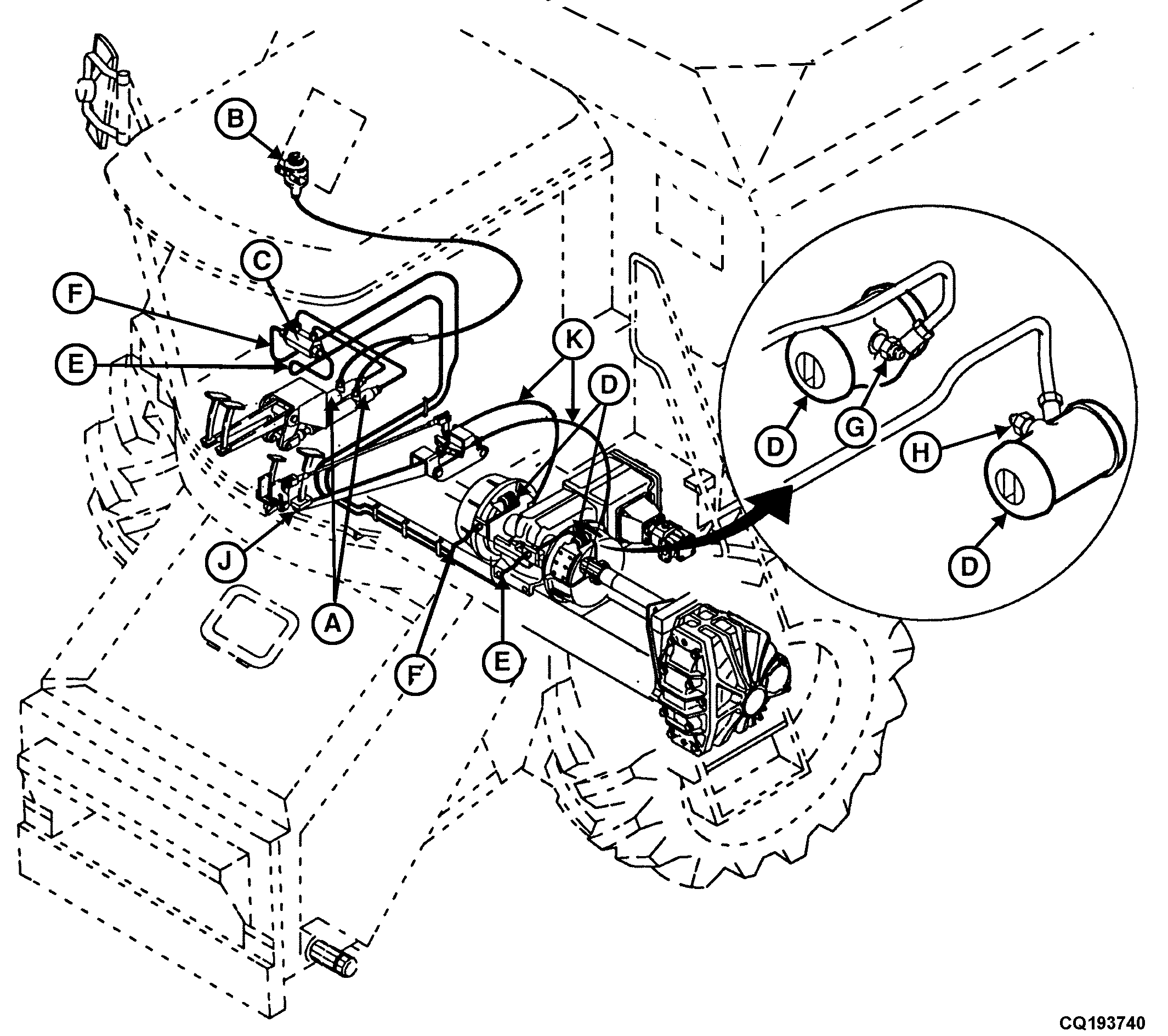

A-Brake master cylinder (2 used)
B-Brake fluid reservoir
C-Equalizing valve
|
D-Brake slave cylinder (2 used)
E-L.h brake line
F-R.h. brake line
|
G-R.h. bleed screw
H-L.h. bleed screw
J-Parking brake operating assembly
|
K-Parking brake bowden cables (2 used)
|
